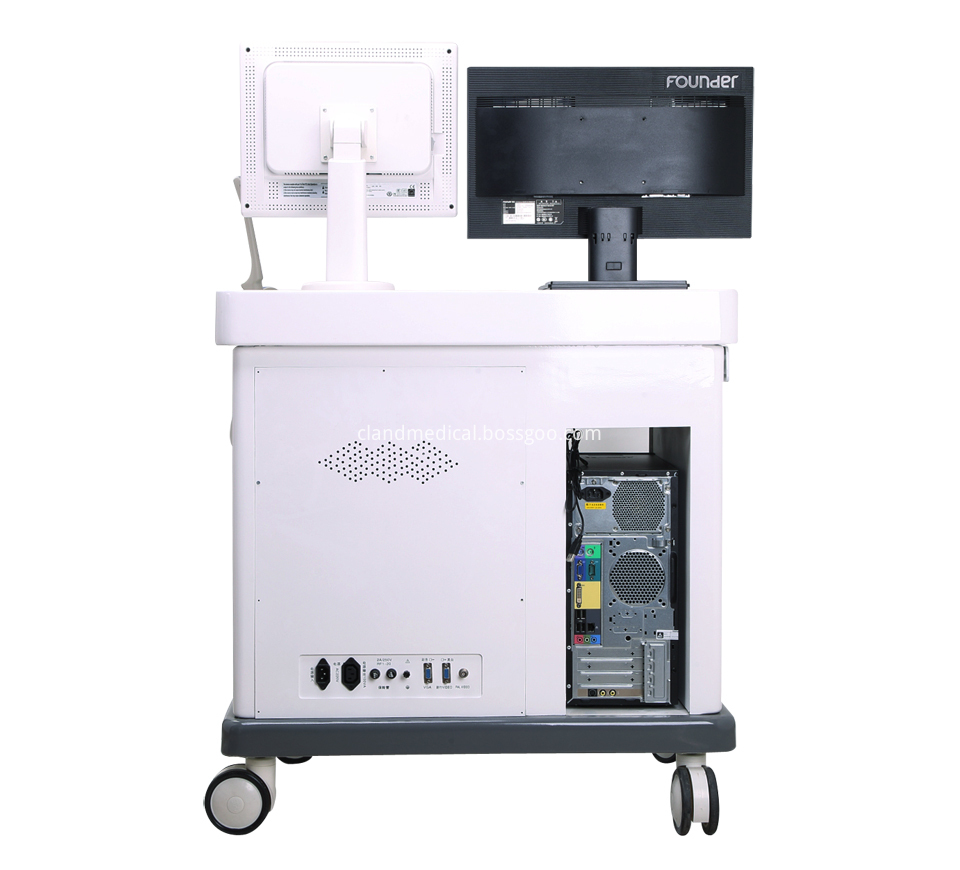

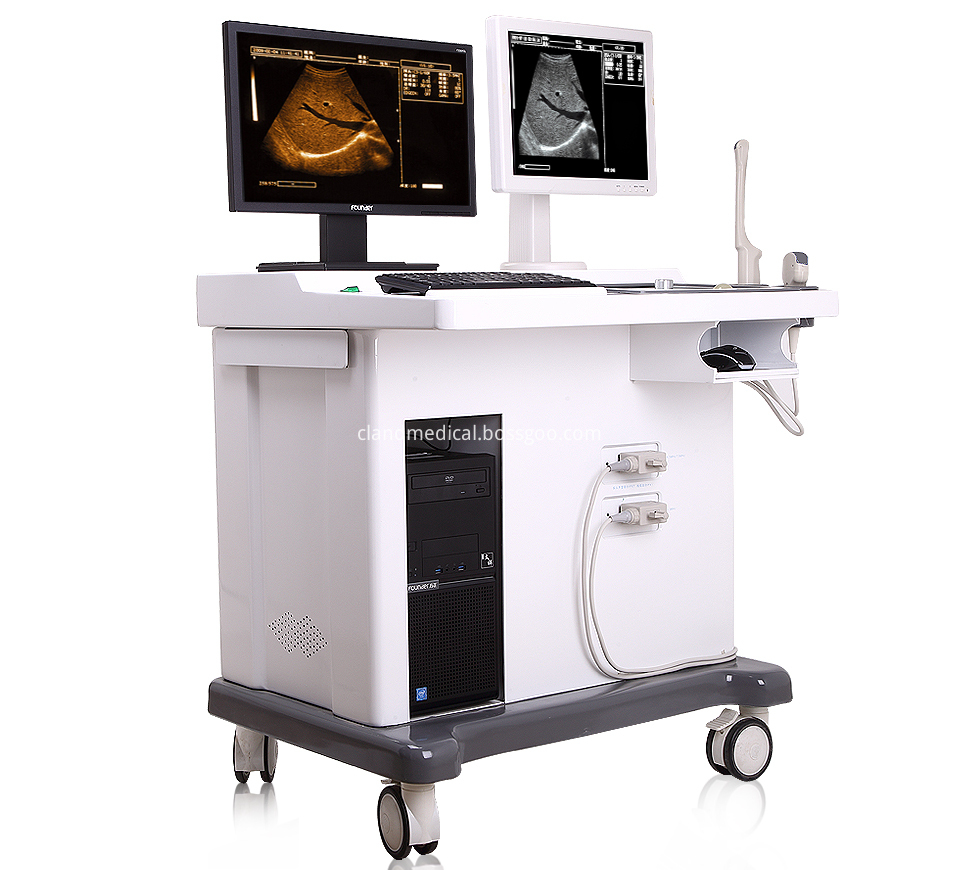

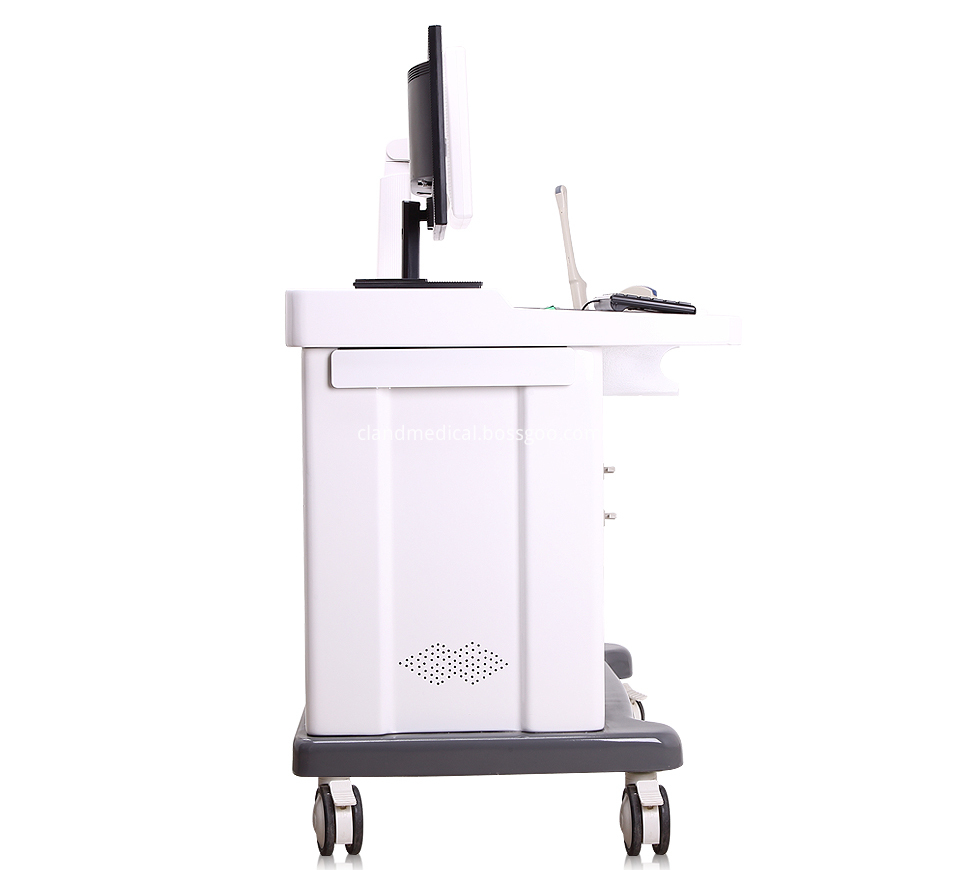

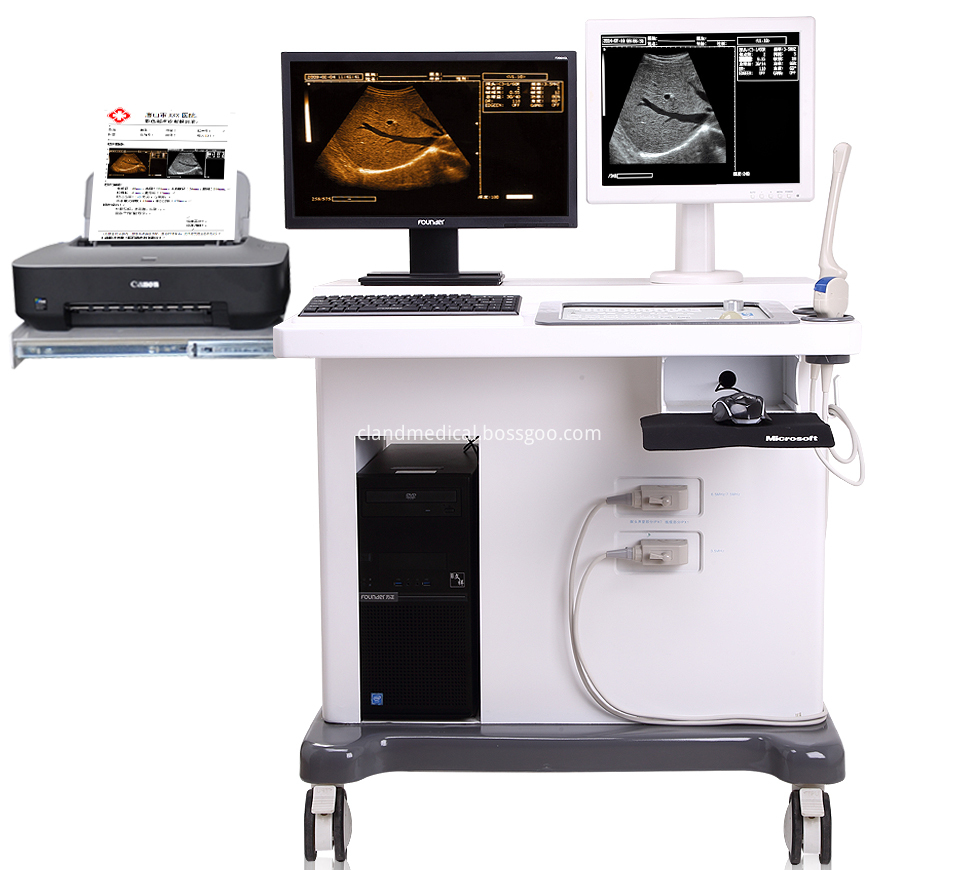

Medical 3D Trolley Ultrasound Machine with Workstation

  • Medical 3D Trolley Ultrasound Machine with Workstation
  • Medical 3D Trolley Ultrasound Machine with Workstation
  • Medical 3D Trolley Ultrasound Machine with Workstation
  • Medical 3D Trolley Ultrasound Machine with Workstation

Medical 3D Trolley Ultrasound Machine with Workstation

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 15-30 Days
    Packaging: 1pc/carton
    Productivity: 100000
    Brand: OEM
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: Good
    Certificate: CE&ISO&FDA
    Port: Shanghai

Basic Info

Model No.: PL-2018CIV

Product Description

Medical 3D Trolley Ultrasound Machine with Workstation



Applicable range:
The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus.

Features:
·Display image in real time, frozen, amplified, black- white reversed, up/down conversed and shift depth in real time.
·Video output: PAL and VGA; large screen monitor, videocassette recorder, video image printer.
·Soft keyboard and track ball to make operation faster, convenient and flexible.
·Trolley structured with plastic cover. Switch power is used without working frequency transformer.
.FPGA and SMT in the device make the device high integrated, small volume and light weight.
·The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.

Image processing:
·Using high-end brand commercial computer configuration, Chinese WINDOWS XP platform;
·21.5"LCD color display high-resolution image capture, with screen display multiple static photos, local amplification;
·Intuitive pseudo-color coding shows visualization of dynamic image enhancement, convenient and accurate measurements;
·Full processing, part processing, gray processing, amplification processing, more unique lens roaming;
·For the image, can be marked text, arrows, boxes.

Print Storage:
·With high-end color Inkjet Printer, fast print beautiful graphics integrated report card.
·Save images and diagnostic reports together, can store one million images and reports.
·Built-in diagnostics thesaurus and common reporting template, mouse-point thesaurus, templates,
select the content is automatically added to the report, thesaurus, templates can be added or modified.
·Fast and convenient historical cases queries.
·The machine has a convenient case history inquiries.

Specifications:
1. Ultrasound scanner:
v Standard probe: 3.5MHz convex probe; 6.5MHz trans-vaginal;
v Detecting depth: ≥ 220mm;
v Display mode: B; B+B; B+M; M;
v Gray Scale: 256;
v Image amplification: ×1.0; ×1.2; ×1.5; ×2.0;
v Measurement: distance; circumference; area; heart rate; gestational week; fetal weight etc;

v Annotation: time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc;
v English-Chinese conversion;
v Cine-loop: 186;
v Obstetric table: BPD; CRL; GS; FL; AC; HC; FW; EDD;
v Body marks: ≥10 types with probe position;
v Monitor :15" LCD;
v Power Supply: 100V~130V/220V~240V, 50/60Hz;
v Net Weight: 40Kgs (including probe);
v Dimension (mm): 910*760*900.

2. Imaging workstation specification:
v Main board : Acer

v CPU: INTEL G3900
v EMS memory: 4G
v Hard disk: 1T
v Monitor: 21.5" LCD


Standard configuration:
v ultrasound scanner with 15" LCD monitor
v image workstation with 21.5" LCD monitor

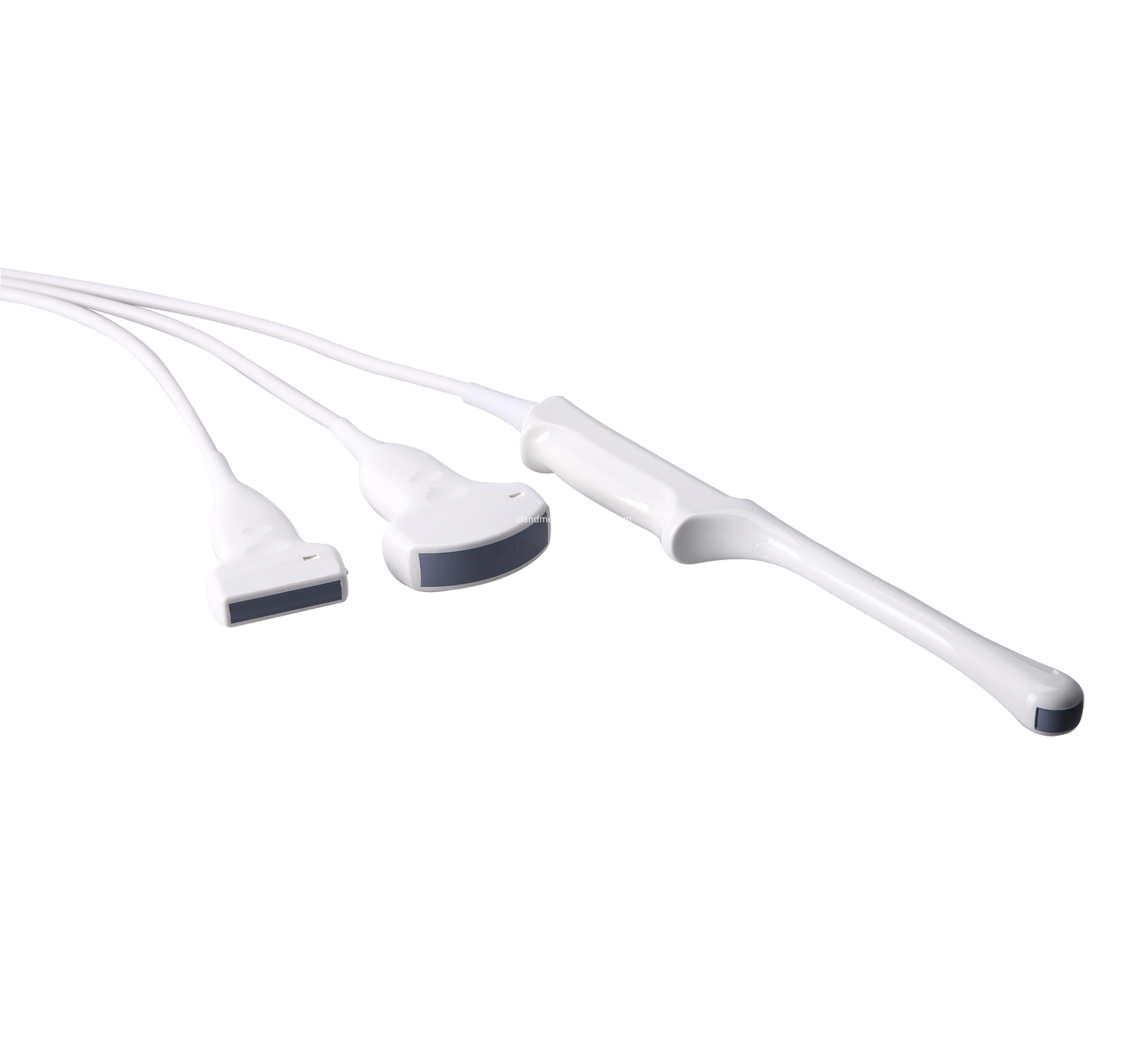

v 3.5Mhz convex probe

Optional:

v 6.5Mhz trans-vaginal probe
v 7.5Mhz linear probe

v HP ink jet printer

ProbesPl 2018civ 3Pl 2018civ 1Pl 2018civ 2Pl 2018civ 6
